Aritmia Karena Gangguan Hantaran

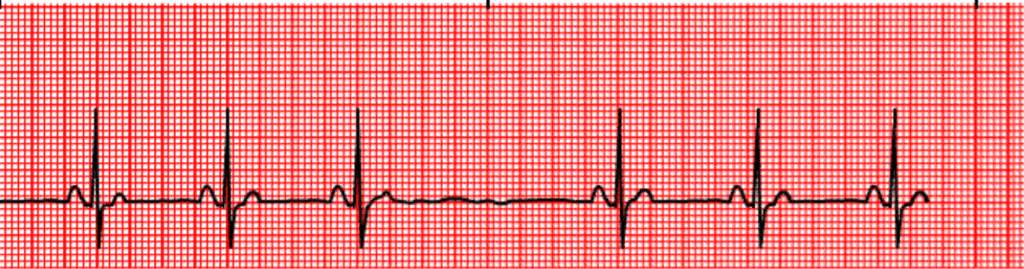

Blok Sinoatrial (SA Blok)
| Irama | teratur, kecuali pada yang hilang |
| Frekuensi (HR) | biasanya kurang dari 60x/ menit |
| Gelombang P | normal, selalu diikuti gelombang QRS |
| Interval PR | normal |
| Gelombang QRS | normal |

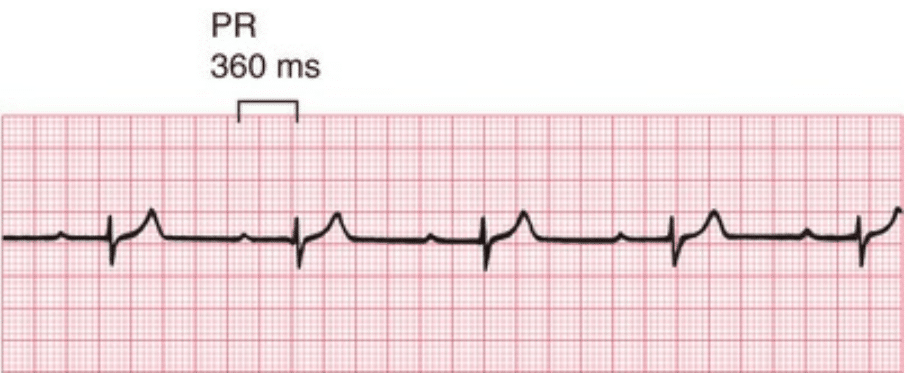

Blok Atrioventrikuler (AV Blok) derajat I
| Irama | teratur |
| Frekuensi (HR) | biasanya antara 60 – 100x/ menit |
| Gelombang P | normal, selalu diikuti gelombang QRS |
| Interval PR | memanjang konstan >0,20 detik |
| Gelombang QRS | normal |

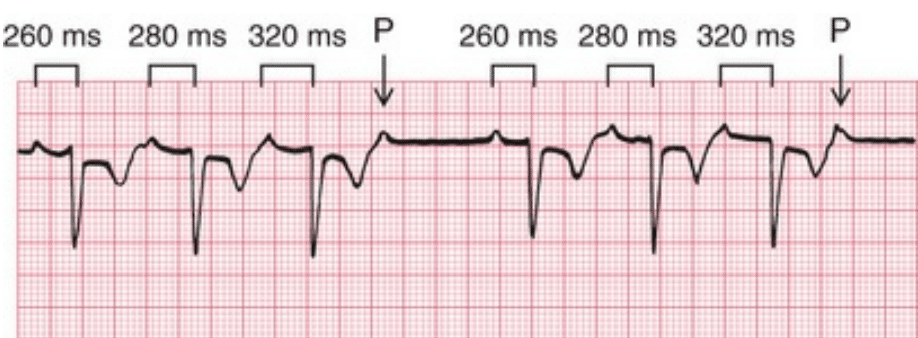

Blok Atrioventrikuler (AV Blok) derajat II Mobitz 1 (Wenchebah)
| Irama | tidak teratur |
| Frekuensi (HR) | 60 – 100x/ menit atau kurang dari 60x/menit |
| Gelombang P | normal, tapi ada satu gelombang P yang tidak diikuti gelombang QRS |
| Interval PR | makin lama makin panjang, sampai ada gelombang P yang tidak diikuti gelombang QRS, kemudian siklus makin panjang diulang. |
| Gelombang QRS | normal |

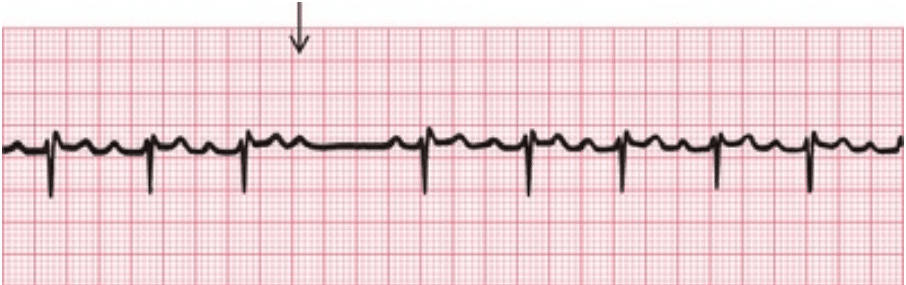

Blok Atrioventrikuler (AV Blok) derajat II Mobitz 2
| Irama | umumnya tidak teratur, kadang bisa teratur |
| Frekuensi (HR) | biasanya lambat, kurang dari 60x/menit |
| Gelombang P | normal,ada satu atau lebih gelombang P yang tidak diikuti gelombang QRS |
| Interval PR | normal/ memanjang secara konstan kemudian ada blok |
| Gelombang QRS | normal |

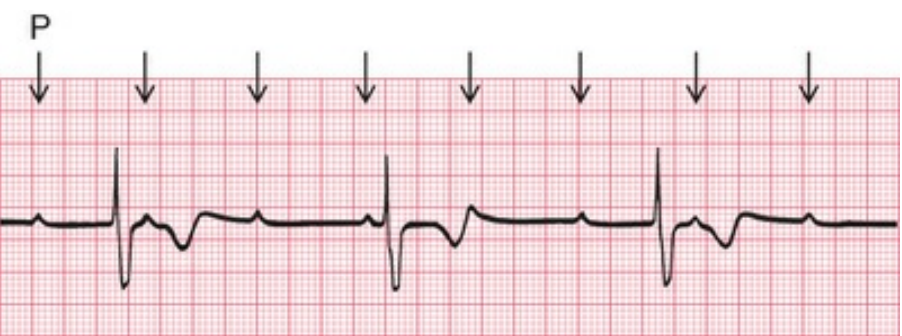

Blok Atrioventrikuler (AV Blok) derajat III (Total AV Blok)
| Irama | teratur |
| Frekuensi (HR) | kurang dari 60x/menit |
| Gelombang P | normal, tetapi gelombang P dan gelombang QRS berdiri sendiri-sendiri sehingga gelombang P kadang diikuti gelombang QRS kadang tidak diikuti. |
| Interval PR | berubah-ubah |
| Gelombang QRS | normal atau lebih dari 0,12 detik |
